WSL2+ZFS: High 5 from the Kernel

Introduction

WSL and ZFS in the same sentence? Clickbait! … well, if it was just few months ago I would have said: totally.

But we are “in the now”, and not only you will see it applied, but we will move to the Linux Kernel 5.x version (stream?).

Should I go on or it’s enough that you want me to shut-up and just show the how-to? That’s what I thought.

Follow the Corsair into this brand new Ocean.

Prerequisites

As usual, here is the full list of the prerequisites:

  • Windows 10 Insiders Fast v19587+
  • WSL2 enabled and a distro installed - I will use Pengwin during this howto
  • config-wsl kernel config file from the WSL2 Kernel repo
  • The latest stable Kernel - 5.5.10 at the time of the writing
  • The latest ZFS source - v0.8.3 at the time of the writing

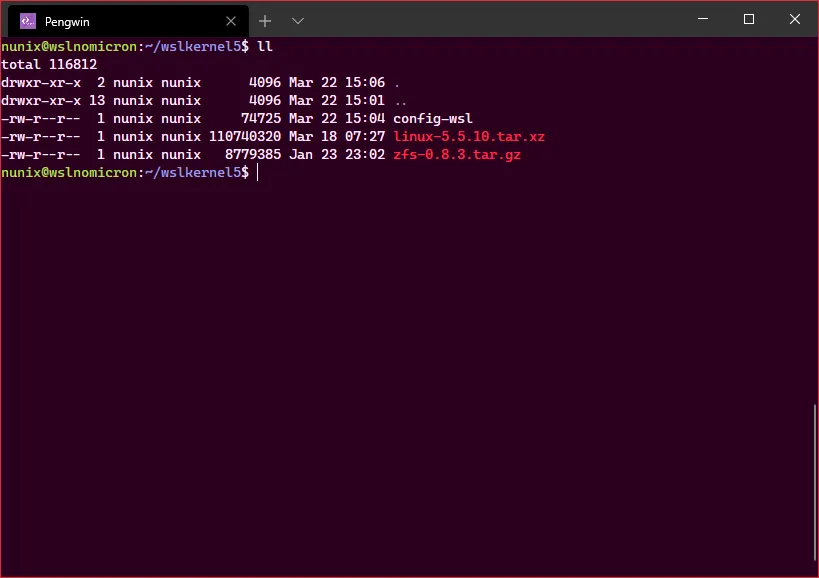

image-20200322150708721

Kernel 5.x: WSL is Linux

In order to be able to use ZFS, we first need to build a Kernel containing the module. So before continuing, ensure you have downloaded the prerequisites.

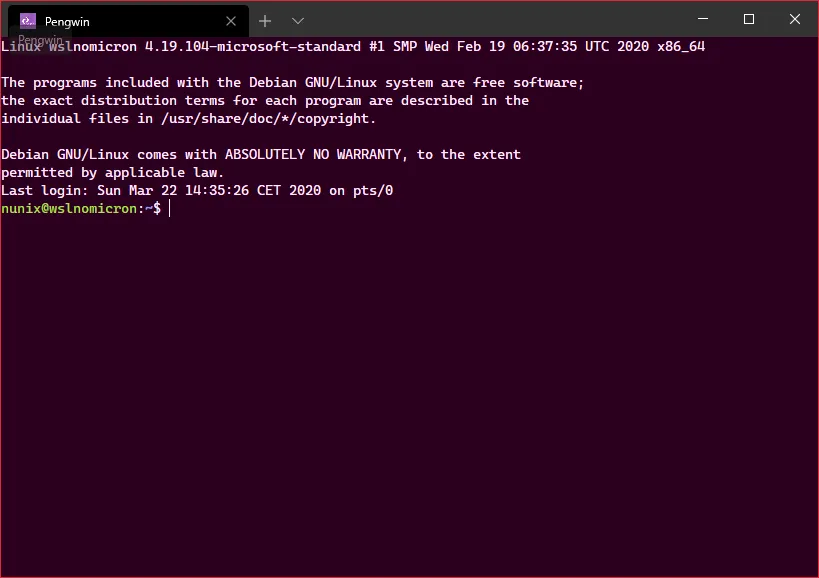

Let’s login into our WSL2 shell:

image-20200322143642177

As shown in the screenshot, Pengwin actually displays which Kernel we are currently running on.

If you do not see it or you are using another distro, then type uname -a to see it.

Before we build the Kernel, we need first to add the ZFS module.

ZFS: building the zeta module

Before we can build the module, we need, well, build tools and the potential dependencies.

Thankfully, the OpenZFS community is incredible, and an howto has already been done for an older version, so we will need to adapt it a bit. Let’s go into our WSL2 shell:

Terminal window

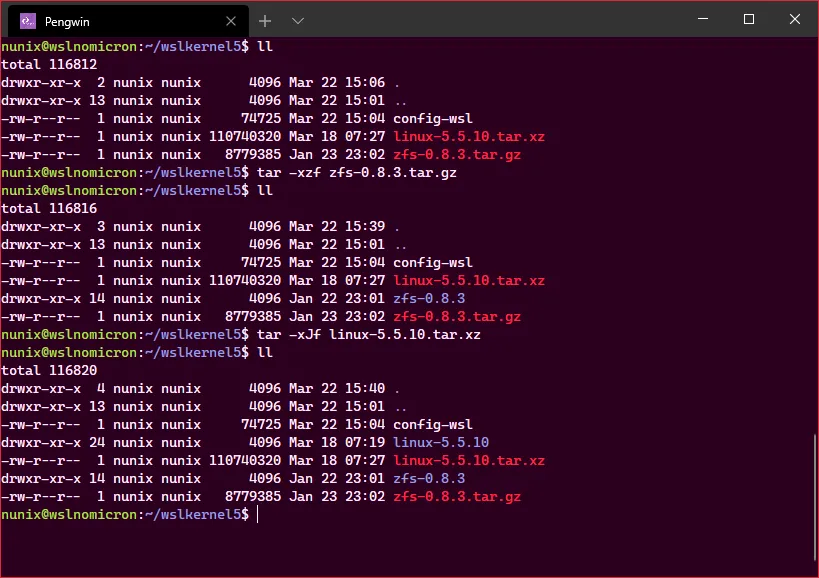

# Extract the ZFS archive
tar -xzf zfs-0.8.3.tar.gz
# Extract the Kernel archive
tar -xJf linux-5.5.10.tar.xz

image-20200322154245000

Terminal window

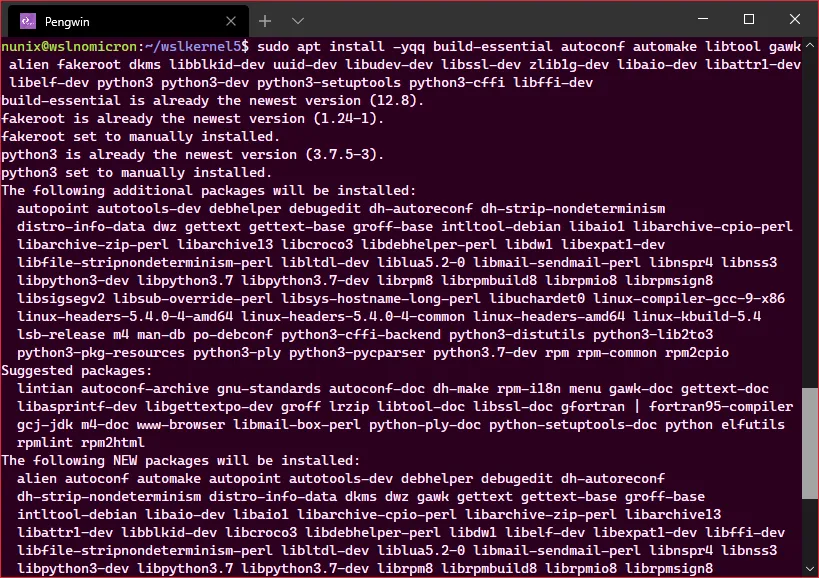

# Install the build tools and the dependencies
sudo apt install -yqq build-essential autoconf automake libtool gawk alien fakeroot dkms libblkid-dev uuid-dev libudev-dev libssl-dev \
zlib1g-dev libaio-dev libattr1-dev libelf-dev python3 python3-dev python3-setuptools python3-cffi libffi-dev flex bison

image-20200322154419391

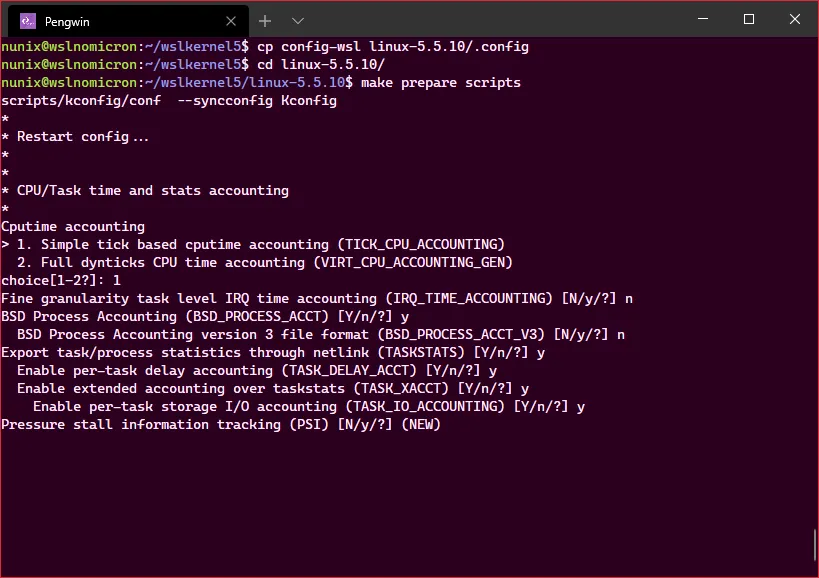

Once the packages installed, we need first to copy the config-wsl inside the Kernel source and run make prepare scripts:

Terminal window
# Copy the config-wsl file
cp config-wsl linux-5.5.10/.config
# Enter the kernel directory and prepare the scripts
cd linux-5.5.10
make prepare scripts
# Here is the full list of the options and the answers I gave which where not the default > feel free to answer to differently based on your own knowledge
TSX enable mode
> 1. off (X86_INTEL_TSX_MODE_OFF) (NEW)
  2. on (X86_INTEL_TSX_MODE_ON) (NEW)
  3. auto (X86_INTEL_TSX_MODE_AUTO) (NEW)
choice[1-3?]: 1


vsyscall table for legacy applications
  1. Full emulation (LEGACY_VSYSCALL_EMULATE)
  2. Emulate execution only (LEGACY_VSYSCALL_XONLY) (NEW)
> 3. None (LEGACY_VSYSCALL_NONE)
choice[1-3?]: 1


IPv4/IPV6 bridge connection tracking support (NF_CONNTRACK_BRIDGE) [N/m/y/?] (NEW) y


DM "dm-mod.create=" parameter support (DM_INIT) [N/y/?] (NEW) y


Virtio Filesystem (VIRTIO_FS) [N/m/y/?] (NEW) y


UTF-8 normalization and casefolding support (UNICODE) [N/y/?] (NEW) y

image-20200322160428320

Once the prepare finished, we can build the ZFS module:

Terminal window
# Enter the ZFS directory
cd ../zfs-0.8.3/

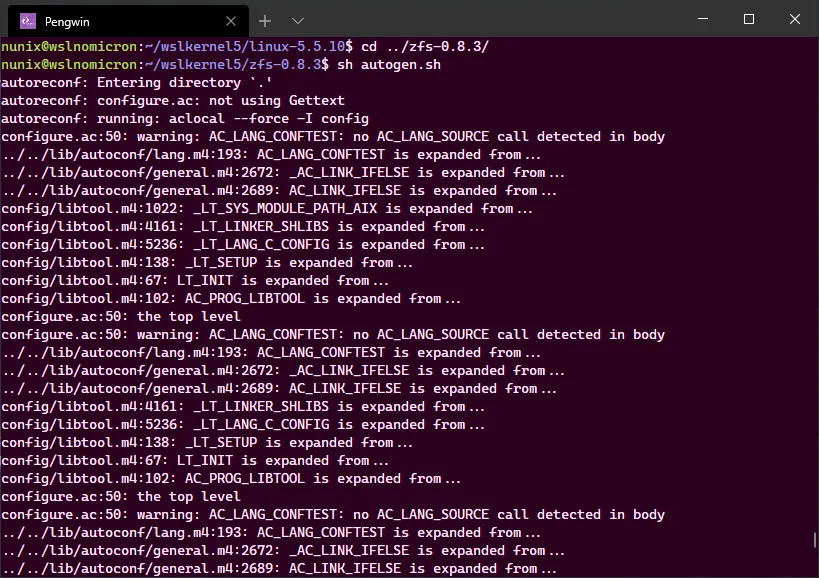

# Run the autogen.sh script
sh autogen.sh

image-20200322162215959

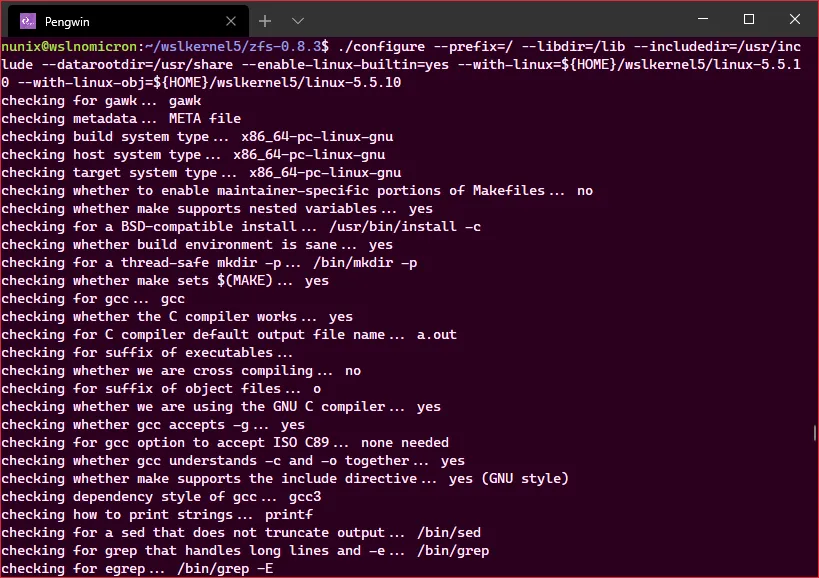

Terminal window
# Run the configure script
./configure --prefix=/ --libdir=/lib --includedir=/usr/inc
lude --datarootdir=/usr/share --enable-linux-builtin=yes --with-linux=${HOME}/wslkernel5/linux-5.5.10 --with-linux-obj=${HOME}/wslkernel5/linux-5.5.10

image-20200322162614572

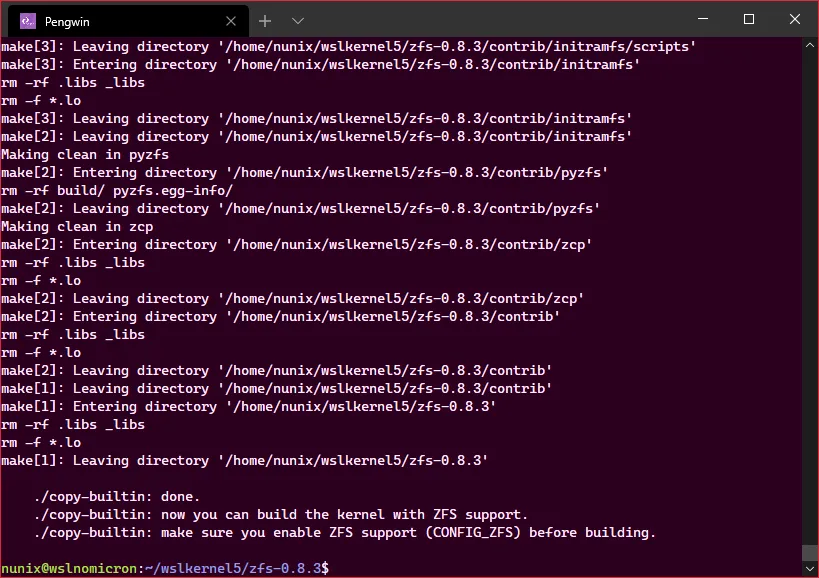

Terminal window
# Run the copy-builtin script
./copy-builtin ${HOME}/wslkernel5/linux-5.5.10

image-20200322162856910

The module has been added to the Kernel sources and we can now enable it.

But before we do that, with all the work done, let’s install the ZFS binaries:

Terminal window
# Build ZFS
make
# Install the binaries in your system
sudo make install

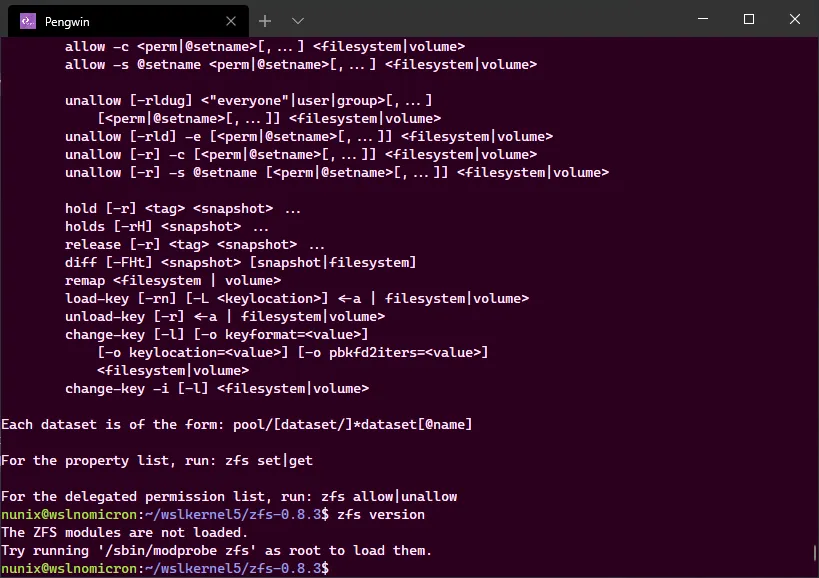

# Run the command zfs to see if it's installed and show the help
zfs
# Try to see which version is installed
zfs version

image-20200322163632779

And an error appeared, but that’s OK. This is “good” error and we will fix it in the next section.

Kernel: build the future

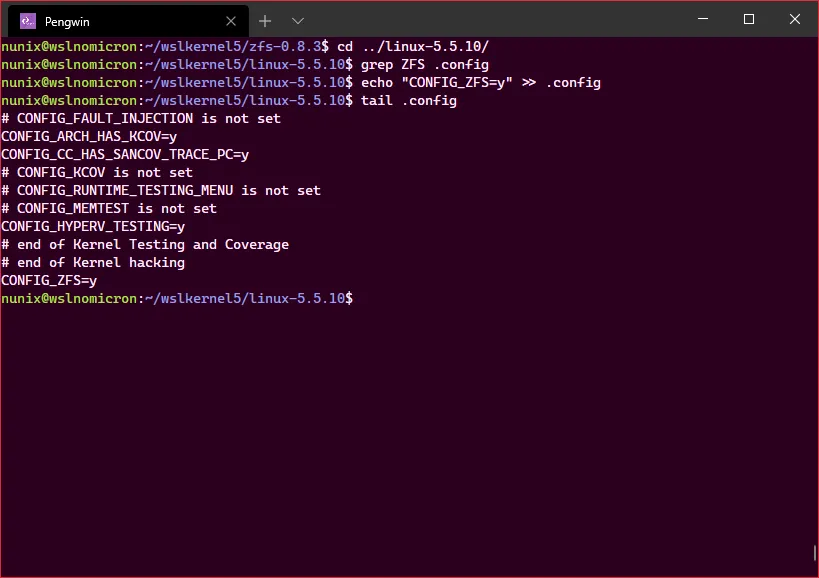

We are finally back on the “kernel building track”, and before we can run the so much wanted make (and have a more or less long pause), let’s first change the config file and add the reference to the ZFS build:

Terminal window
# Enter the kernel directory
cd ../linux-5.5.10/
# Check if a ZFS reference already exist in the config file
grep ZFS .config
# Add the ZFS reference to the end of the config file
echo "CONFIG_ZFS=y" >> .config
# Confirm it has been correctly added
tail .config

image-20200322165306309

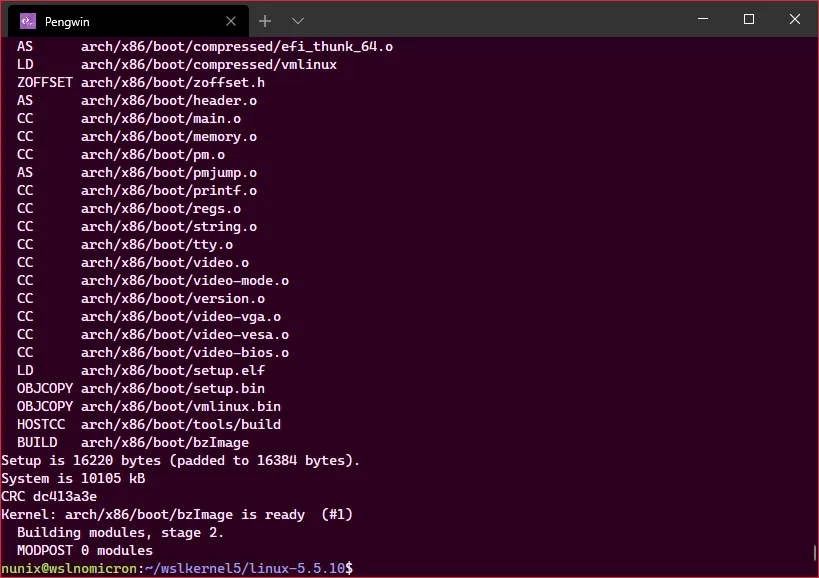

Finally, the time is here to take a pause to build the kernel:

Terminal window
# As we have a .config file, just run make > no need of the KCONFIG as instructed in WSL2 Kernel repo
make

image-20200322172828214

We have now our brand new kernel v5 with the ZFS module embedded.

Before we move on, let’s install the modules:

Terminal window
# Install the modules built with the Kernel
sudo make modules_install

Now the last piece, we need to use it for our WSL2 distros.

WSL2: The future is now

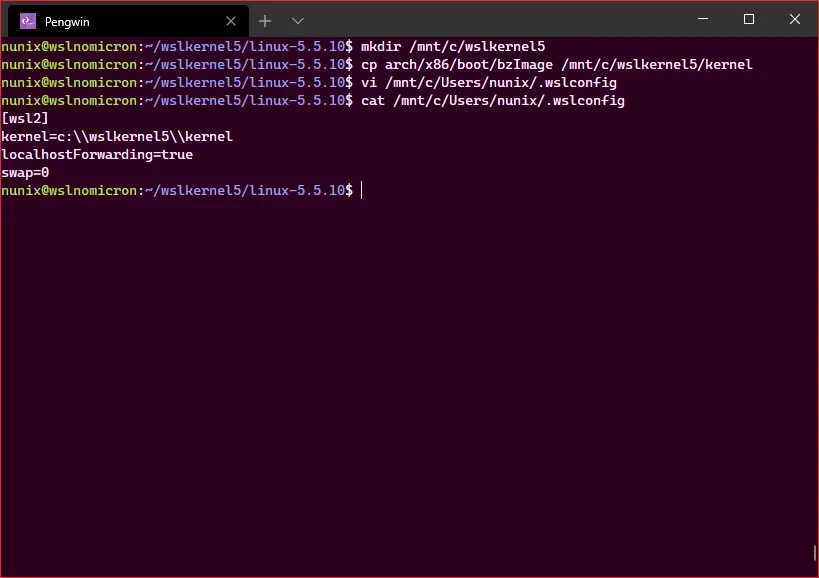

Ok, let’s setup our custom Kernel:

Terminal window
# Create a directory on "Windows" path to store the kernel
mkdir /mnt/c/wslkernel5
# Copy the Kernel file
cp arch/x86/boot/bzImage /mnt/c/wslkernel5/kernel
# Edit the wslconfig file and add the Kernel setting
vi /mnt/c/Users/<username>/.wslconfig

image-20200322174209994

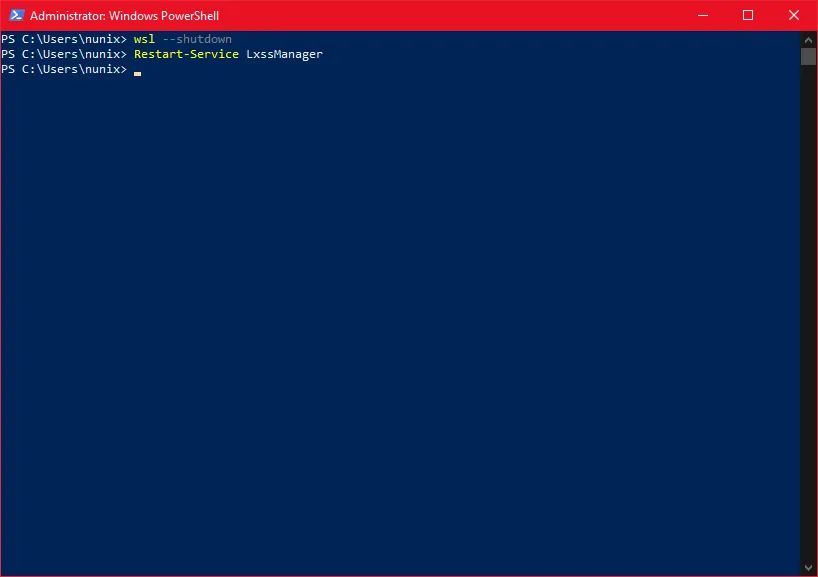

Exit your WSL2 shell and start Powershell as an administrator:

Terminal window
# Shutdown the WSL2 VM
wsl --shutdown
# Restart the LXSS process
Restart-Service LxssManager

image-20200322174512264

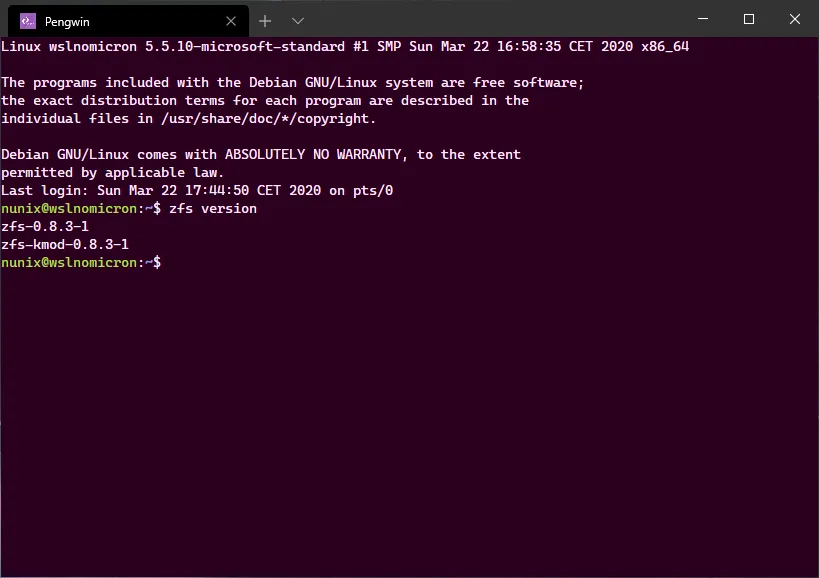

We can finally start again our WSL2 shell and enjoy the new Kernel with ZFS:

Terminal window
# Check the ZFS version installed
zfs version

image-20200322174934661

Conclusion

For the ones still doubting: WSL2 is growing at a (crazy) fast pace. And all the build work was made inside WSL2, without any need of a VM or bare metal Linux.

Having the possibility to use the latest kernel, to had modules is something that some persons might have been looking for, and now it became a reality.

I hope you enjoyed this new gem from the Corsair’s chest and see you soon in the vast Linux Ocean … I simply have different ship.

>>> Nunix out <<<

Bonus: one Kernel to rule them all

oh sorry, you thought I was done? well almost, but I wanted to share one last trick.

As you may know (or not), all the distros installed under your user are running in the same microVM. Therefore the kernel and the ZFS module are also available to all the distros.

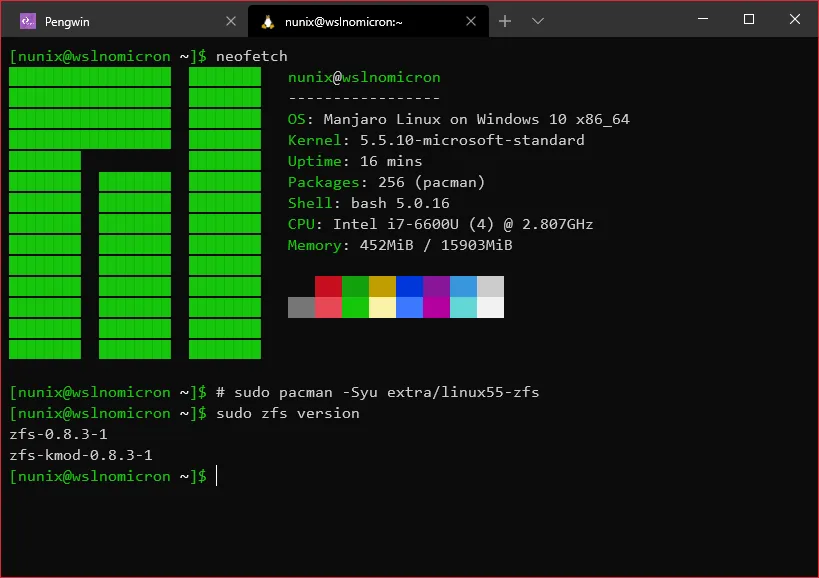

So, for all my Arch (based) distro loving friends:

image-20200322180647702

Enjoy :)
